Printing dual droplets
Here at CELLINK, we want to inspire you to print more advanced models using the BIO X. In the following section, we demonstrate dual droplet printing with two of our bioinks.
CELLINK Products Used
- CELLINK® Bioink
- GelMA A
- BIO X

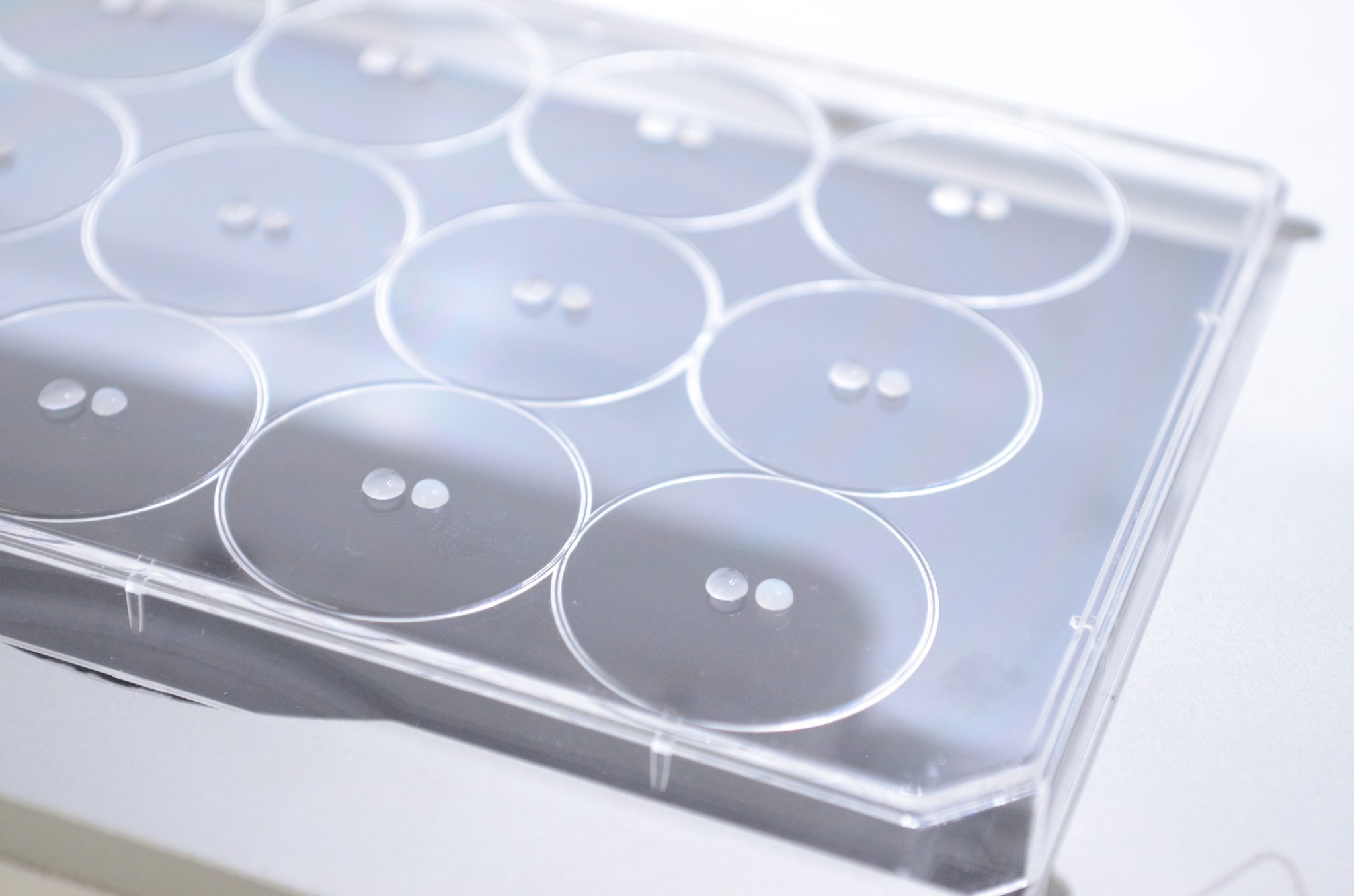

Bioprinting videoIn this video, we demonstrate printing droplets side by side using a pneumatic printhead for CELLINK Bioink and a Temperature controlled printhead with nozzle insulator for GelMA A. Both CELLINK Bioink and GelMA A were diluted with 10% cell suspension and the cartidges were capped with 25G nozzles. Different bioink droplets were printed beside each other on a 12-well plate lid. CELLINK Bioink was printed at 15-20 kPa, while GelMA A required higher pressure of 35-40 kPa. Despite the different properties of CELLINK Bioink and GelMA A, both bioinks can be printed in the same printing session beside each other. Both CELLINK Bioink and GelMA A droplets can be crosslinked by adding our crosslinking agent. Additionally, GelMA A droplets also have the ability to be photocrosslinked.
The G-code for printing these dual droplets can be found on Bioverse. The distance between the droplets can be changed in the G-code from 4 mm to any distance preferred.
